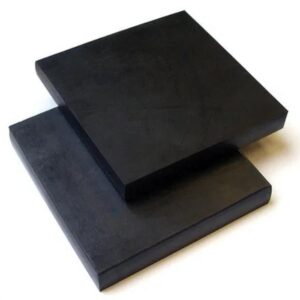

Neoprene Bearing Pads

ZMS Rubber Industries manufactures premium neoprene rubber bearing pads engineered to provide superior load distribution and vibration isolation in construction and infrastructure projects. These durable elastomeric pads are specifically designed to absorb structural movements, reduce stress concentrations, and protect concrete surfaces in bridges, buildings, and heavy industrial applications.

Specifications

Heavy‑Duty Neoprene Bridge & Structural Bearing Pads

Material: CR (Chloroprene) Neoprene rubber, oil‑resistant grade
Standard Sizes: 100 × 100 mm up to 1000 × 1000 mm
Thicknesses: 5 mm – 50 mm
Shore A Hardness: 60 ± 5
Tensile Strength: ≥ 8.0 MPa (ASTM D412)
Elongation at Break: ≥ 250%
Compression Set: ≤ 25% at 50% deflection, 22 h @ 70 °C (ASTM D395)
Load Capacity: Up to 30 MPa static load
Temperature Range: −40 °C to +90 °C
Color: Standard Black; custom colors on request
Certifications: ISO 9001:2015 manufacturing; IDEM strength tests
Applications: Bridge bearings, machinery mounts, structural support pads, vibration isolation
